Average discharge per stroke ... 16 liters per minute of 40 strokes.
Operating depth (approx.) ... up to 45 meters
SALIENT FEATURES :

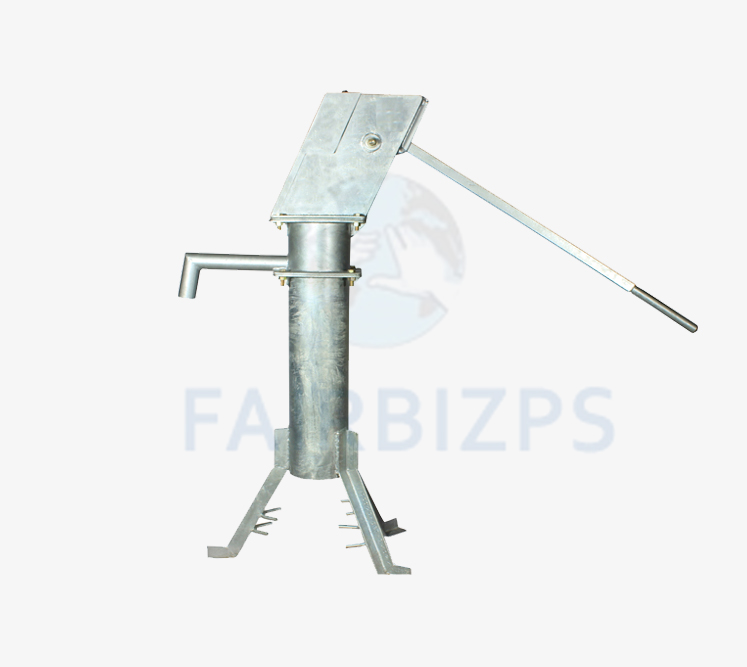

The above-ground mechanism is fabricated from welded steel plates and
sections for strength, and hot-dip galvanized for corrosion resistance.
A chain and quadrant mechanism of the pump handle provides easy and
accurate alignment of the connecting rod.
The handle bar has a high mechanical advantage and is designed to
counter balance the weight of the connecting rods to reduce the pumping
effort required by the user.
A unique pivot assembly (sealed ball bearings for the handle on a
stainless steel axle) adds to the ease of operation and lower
maintenance needs.
125 mm stroke length of the handle provides a water discharge of 15
liters per minute per 40 strokes with the cylinder installed in the
range of the 15 m to 45 m below-ground level.
The water tank assembly has an appropriate coupler to suit 32 mm NB
medium class
